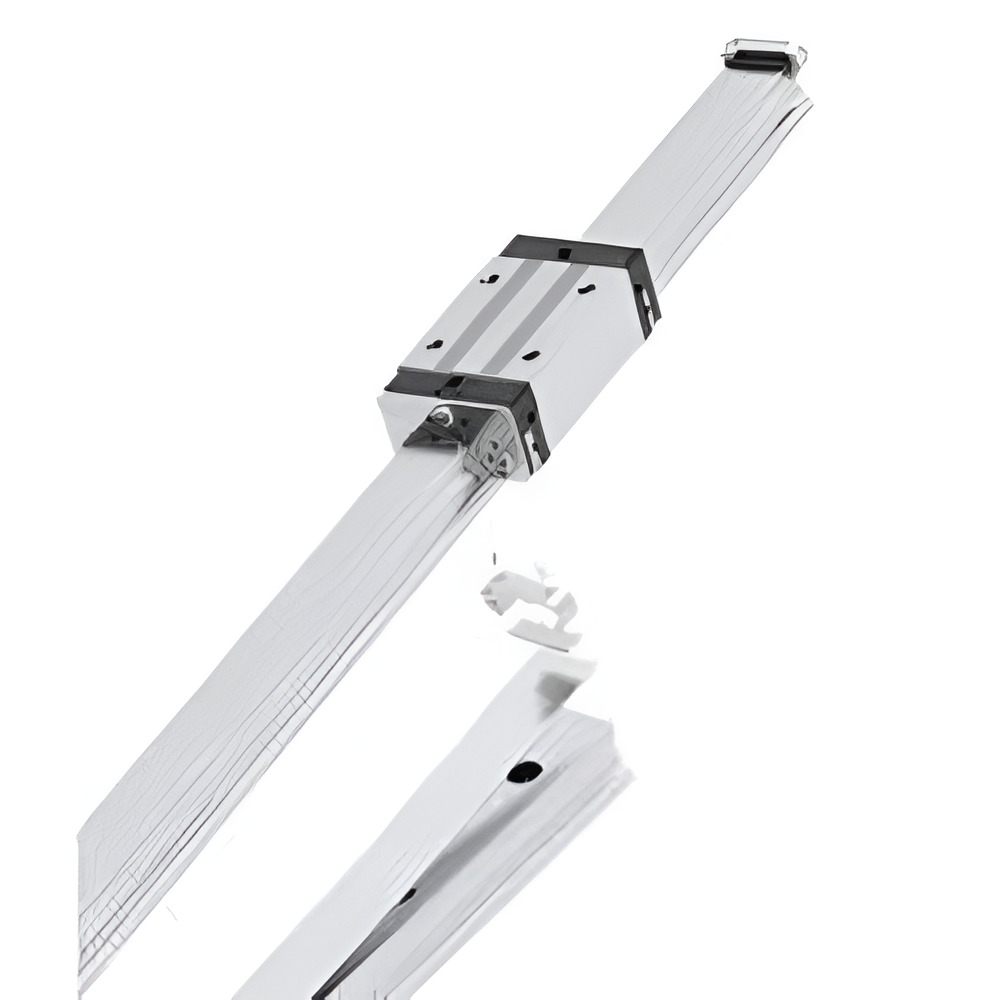

About HRU Series: High-rigidity 4-row ball bearing guides with U-shaped rails
The HRU Series merges the robust high-rigidity performance of 4row ball bearings with the versatile design of a U- shaped rail profile enabling bolt mounting from both top and bottom This configuration supports multidirectional load capacity and excels under high moment and torsional stresses
Key Highlights
- U-Shaped Rail" Profile Provides structural flexibility accommodating diverse assembly configurations and enabling the rail to double as a structural component
-
- Patented Reinforcement Plates Integrated steel end plates enhance rigidity and durability reducing deformation under load deal for demanding operational environments
-
- Eco Friendly Lubrication Design Features ball chain carriers and internal grease pads that minimize lubrication requirements and support smooth low maintenance operation
-
- High Load Capacity Dynamic ratings between 77kN to 125kN static ratings from 121kN to 226kN
-
- High Load Capacity Dynamic ratings between 77kN to 125kN static ratings from 121kN to 226kN
-
- High Speed Performance Engineering supports up to 10ms travel speed and accelerations up to 500ms
-
- Sealing Maintenance Equipped with double lip seals and optional cover strips to prevent dust ingress integrated lubrication channels extend service intervals
Advanced High-Rigidity Guide SolutionEngineered for challenging industrial environments, HRU Series 4-row ball bearing guides offer a robust and stable solution. Their U-shaped rails contribute to exceptional load capacity and uniform distribution, supporting consistent operational performance even under heavy use. The guides smooth motion ensures precision, essential in sectors demanding accuracy and reliability.
Premium Stainless Steel and Silver FinishCrafted from stainless steel, the HRU Series ball bearing guides resist rust and wear, extending operational life even in harsh settings. The silver finish not only enhances visual appeal but also adds an extra layer of protection. Standard sizing ensures straightforward integration into a wide array of machines and equipment.
FAQs of HRU Series: High-rigidity 4-row ball bearing guides with U-shaped rails:
Q: How are HRU Series ball bearing guides installed in industrial machinery?
A: HRU Series guides are typically mounted using the supplied U-shaped rails and standard size hardware, allowing for efficient and secure integration into various types of industrial machinery. Manufacturer instructions should be followed to ensure optimal performance and longevity.
Q: What benefits does the high-rigidity 4-row ball bearing structure provide?
A: The 4-row ball bearing arrangement delivers enhanced load capacity, greater stability, and consistent smoothness in motion. This results in precise, reliable operation and reduced maintenance needs within demanding industrial environments.
Q: When should I consider upgrading to HRU Series guides for my equipment?
A: You should consider upgrading to HRU Series guides when your current system requires improved rigidity, smoother movement, and higher reliability to accommodate heavy-duty or precision tasks. They are an excellent choice for boosting machine performance and durability.
Q: Where can I source HRU Series guides in Taiwan?
A: HRU Series guides can be sourced from authorized exporters, importers, suppliers, and service providers in Taiwan. These professionals offer guidance on choosing the right specifications for particular industrial needs and ensuring warranty coverage.
Q: What is the process for maintaining these stainless steel guides?
A: Routine inspection and lubrication help sustain HRU Series guides smooth operation. Their stainless steel composition minimizes maintenance frequency, but it is recommended to periodically check for debris and ensure all fastenings remain tight.
Q: How are these guides typically used in industrial applications?
A: The HRU Series guides are commonly utilized in automated machinery, conveyor systems, and precision equipment where high rigidity, smooth structure, and reliable motion are critical for operational efficiency.
Q: What warranty coverage is provided with HRU Series ball bearing guides?
A: Each HRU Series guide comes with a 1-year warranty, which covers any manufacturing defects or issues arising under standard industrial usage, as specified by the supplier or service provider.
