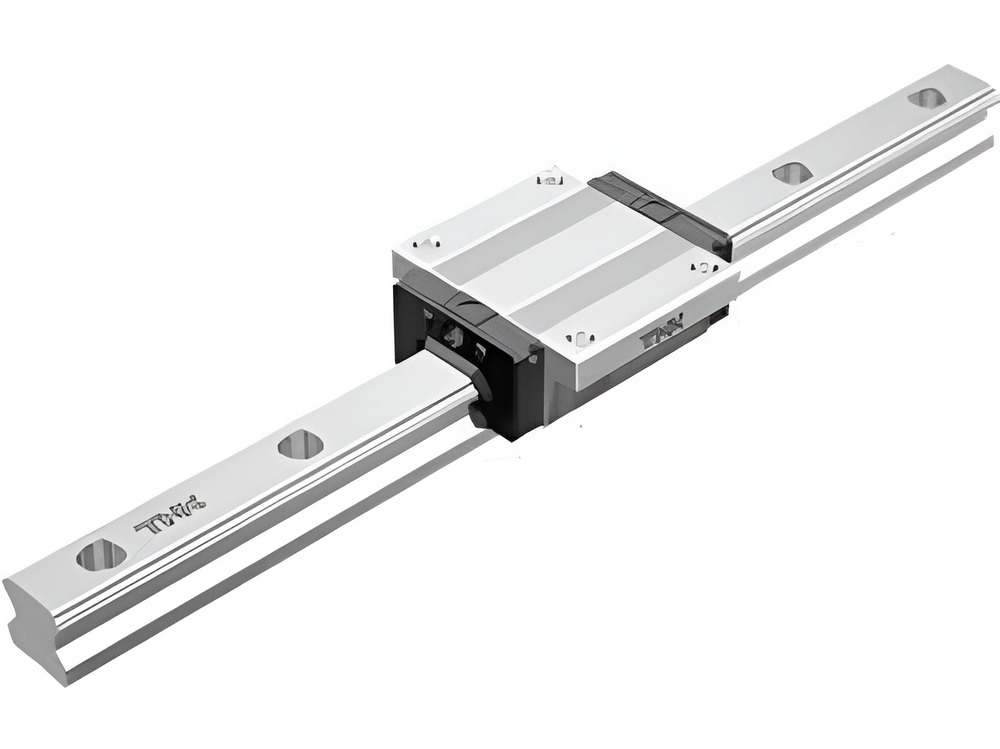

HSR Series: High-speed, high-precision linear guides.

Price 900 INR/ Number

Get a Price/Quote

HSR Series: High-speed, high-precision linear guides. Specification

Structure
Smooth

Usage
Industrial

Color
Silver

Size
Standard Sizes

Material
Stainless Steel

Use
Industrial

Warranty
1 YEAR

HSR Series: High-speed, high-precision linear guides. Trade Information

Minimum Order Quantity
1 Number

Supply Ability
1000 Per Month

Delivery Time
7 Days

About HSR Series: High-speed, high-precision linear guides.

The HSR Series is a line of linear motion guides engineered for applications requiring exceptional accuracy rigidity and smooth motion Featuring a four row circular arc contact design the HSR series delivers outstanding load capacity and precision performance in both highspeed and high load environments The guide block and rail are precision machined and the use of recirculating ball bearings ensures low friction and consistent linear movement

Key Features

Structure: Four-row recirculating ball bearing design.
Contact Angle: 45, offering equal load capacity in four directions (radial, reverse-radial, and lateral).
Rigidity: High rigidity due to wide rail and large ball contact surface.
Mounting Type: Flange-type block with tapped holes (top/bottom mount).
Lubrication: Grease nipple standard; optional oil lubrication system.
Preload Classes: Light (Z0), Medium (Z1), Heavy (Z2).
Accuracy Grades: Normal (N), High (H), Precision (P), Super Precision (SP), Ultra Precision (UP).
