लीनियर मोशन गाइडवे एक्स्पोर्टर, इम्पोर्टर, सर्विस प्रोवाइडर, सप्लीर, लीनियर मोशन गाइडवे भारत

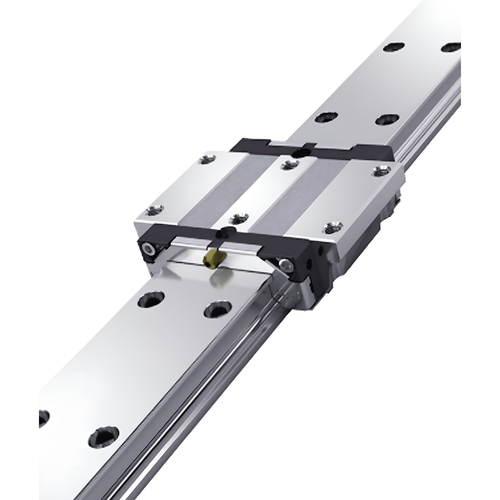

ERC Series: Low profile 4-row ball bearing guides

Design: Low-profile, 4-row ball bearing linear guide Ball Arrangement: 45 contact angle, "O-type configuration Load Capacity: Equal in all directions (radial, reverse radial, lateral) Rail Sizes: 15, 20, 25, 30 mm Block Types: Standard (M), Long (ML), Flanged (F), Flanged Long (FL) Height: Lower overall height than ARC/HRC series Speed: Up to 10m/s Acceleration: Up to 500m/s Sealing: Double-lip end seals for dust protection Lubrication: Built-in lubrication channels for easy maintenance Applications: Compact automation, semiconductors, precision equipment

जांच भेजें

ARC Series: Standard 4-row ball bearing guides.

Key Features Fourïrow recirculating steel balls arranged in an "Oïtypeï (backïtoïback) configuration set at a 45 contact angle, delivering equal load capacity in all directions Designed for high dynamic loads, high rigidity, and sustained moment resistance thanks to increased ball count and reinforcement plates

जांच भेजें

MRU Series: Miniature linear guides with bottom-mounting options

Mounting: Bottom-mount (through-hole) Rail Width: 315 mm Block Length: 1040 mm (short to long types) Stroke Length: Up to 300 mm (custom lengths available) Material: Stainless steel (corrosion-resistant) Load Capacity: Up to 1,500 N (dynamic) Precision Grades: N, H, P Preload Options: Z0 (light), Z1 (medium), Z2 (heavy) Max Speed: 5 m/s Operating Temp.: -20C to +80C

जांच भेजें

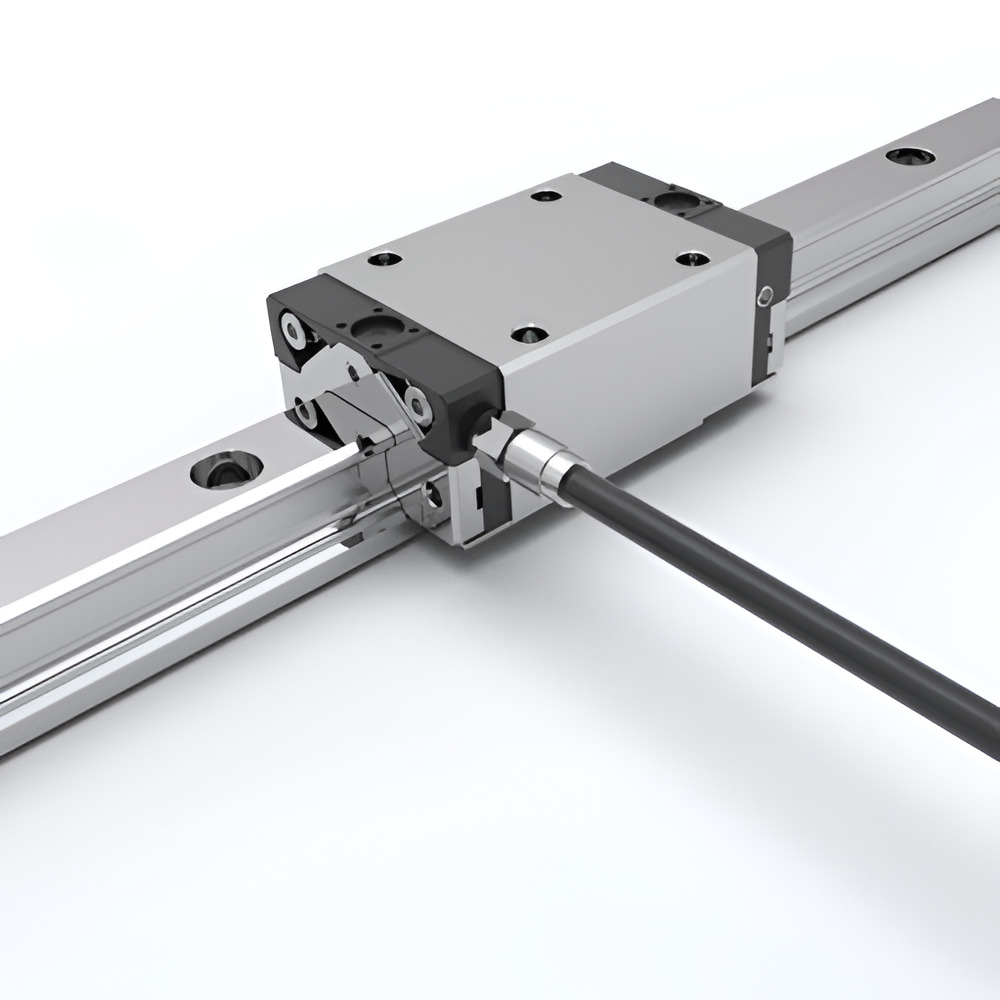

ARU Series: Standard 4-row ball bearing guides with U-shaped rails.

Design: 4-row circular arc ball guides with 45 contact angle ("O configuration") Rail Type: U-shaped profile for top and bottom mounting Sizes Available: 15, 20, 25, 30, 35, 45, 55 mm Load Capacity: Dynamic: 7.7125kN Static: 12.1226kN Mounting Bolts: M5 to M14 depending on rail size Speed & Acceleration: Up to 10m/s and 500m/s Sealing: Double-lip seals for dust protection Lubrication: Built-in lubrication channels and pads Applications: CNC machines, automation systems, heavy-duty motion setups

जांच भेजें

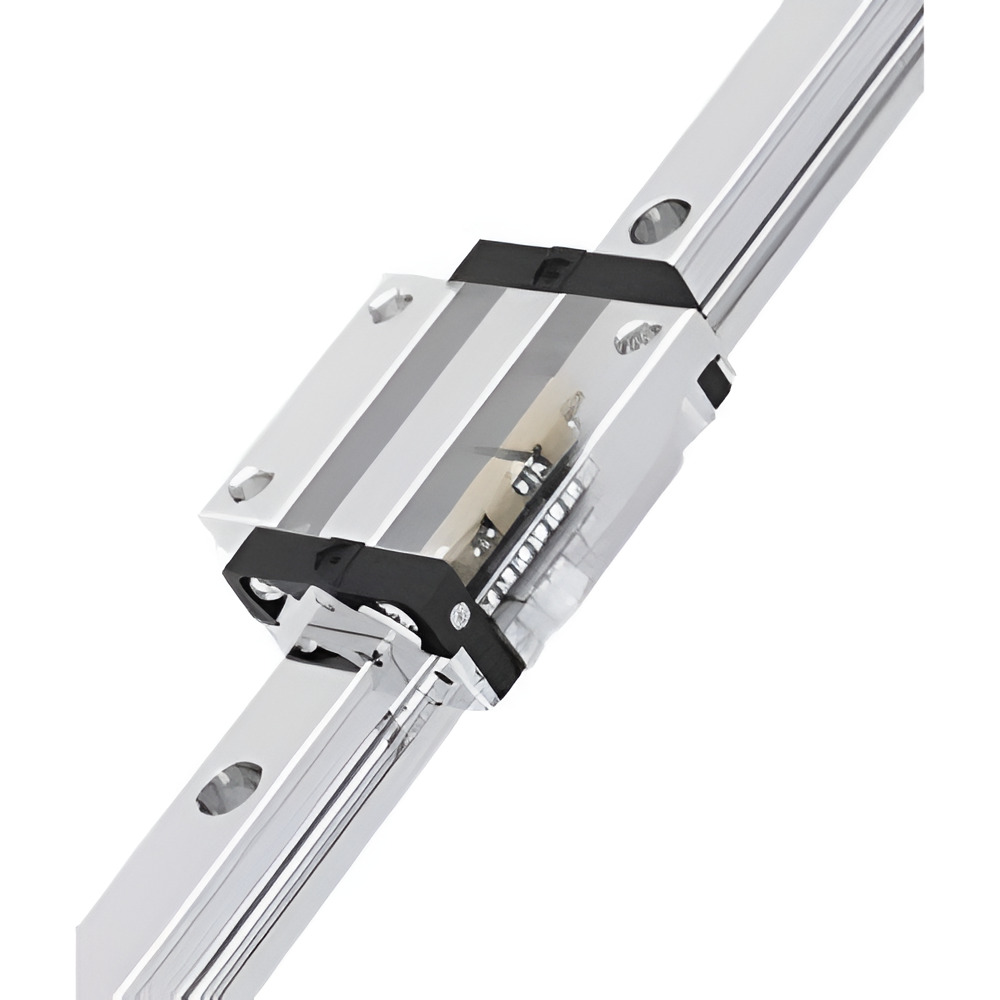

ARR Series: Standard roller bearing guides.

Design: 4-roller circularïarc recirculating guide with patented silent roller chain Frame Sizes: 15, 20, 25, 35, 45, 55 mm Block Types: Standard (M), Flange (F) with lengths N (standard), L (long), XL (extra-long/MXL) Dimensions (rail+block height): 24ï80 mm; width: 34ï140 mm; length: 34ï140 mm depending on block type Load Ratings: Dynamic (Cïkm): 15.6ï209 kN Static (C): 43ï615 kN Speed & Noise: Up to 10m/s; ultra-quiet roller chain reduces high-frequency noise

जांच भेजें

MR Series: Miniature linear guides with stainless steel construction.

Compact and lightweight design Stainless steel construction for corrosion resistance Smooth, quiet linear motion Optional dust-proof/sealed versions Ideal for tight-space, high-precision applications

जांच भेजें

LRR Series: Low-profile roller bearing guides

Low-profile design: Optimized for space-constrained applications without sacrificing performance. Roller bearing mechanism: Uses cylindrical rollers instead of balls for higher load capacities and greater rigidity. High precision: Suitable for applications requiring tight tolerances and minimal deflection. Smooth linear motion: Reduced friction and improved consistency over long travel distances. Multiple carriage options: Often available in different lengths and load capacities for customization.

जांच भेजें

HRU Series: High-rigidity 4-row ball bearing guides with U-shaped rails

Design: 4-row circular-arc recirculating steel balls in 45 "O" configuration equal multi-directional load capacity Frame Sizes: 15-55mm (covering conventional range) Block Types: Standard (M) and Flanged (F), available in Short (S), Standard (N), and Long (L) lengths Dimensional Ranges: Height (rail + block): 2480mm Block Width: 341/40mm Block Length: 41/202mm

जांच भेजें

आयरनलेस सर्वो मोटर लीनियर मोशन गाइडवे

जांच भेजें

WRC सीरीज़ 4 रो वाइड बॉल टाइप लीनियर मोशन गाइडवे

जांच भेजें

HRR 4 रो टाइप लीनियर मोशन गाइडवे

जांच भेजें

HRR सीरीज़ स्टैंडर्ड रोलर लीनियर मोशन गाइडवे

जांच भेजें

मैग्नेटिक एनकोडर के साथ MSS सीरीज़ लीनियर मोशन गाइडवे

जांच भेजें

ARR 4 रोलर टाइप लीनियर मोशन गाइडवे

जांच भेजें

15-55 रोलर लीनियर मोशन गाइडवे

जांच भेजें

HRC Series: High-rigidity 4-row ball bearing guides.

Rail Sizes: Frame widths of 15,20,25,30,35,45, and55mm Carriage Types: Available in Flanged (F), Flanged Long (FL), Unflanged (M), and Unflanged Long (ML) configurations Speed & Acceleration: Supports max travel speeds up to 10m/s and accelerations over 500m/sï Seals & Dust Protection: Equipped with double-lip seals for robust dust resistance; options for reinforced types in harsh environments

जांच भेजें

HRR Series: High-rigidity roller bearing guides.

Row profile: 45mm width Seal: Standard ("Sï) with triple protection (end, base, internal) Preload classes: V0, V1, V2 Accuracy grades: H, P, SP, UP (selection depending on precision needs) Rail-block combo: Uses same rail as ARR and LRR, interchangeable with similar load capacity Roll chain option: Optional noise-reducing ball chain for smoother operation and better lubrication

जांच भेजें
